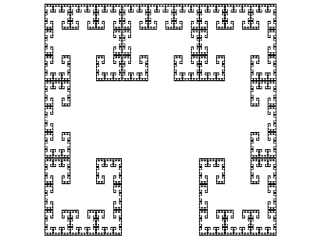

Abb. 166 zeigt das Cantor Labyrinth.
| w | a | b | c | d | e | f | p |
| 1 | 1/3 | 0 | 0 | 1/3 | 1/3 | 2/3 | 1/7 |
| 2 | 0 | 1/3 | 1 | 0 | 2/3 | 0 | 3/7 |
| 3 | 0 | -1/3 | 1 | 0 | 1/3 | 0 | 3/7 |
Abb. 166

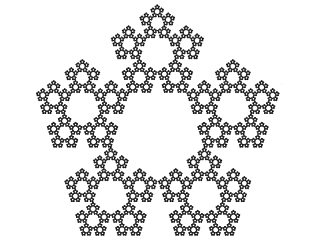

Abb. 167 zeigt das Sierpinski Pentagramm.
| w | a | b | c | d | e | f | p |
| 1 | 0.382 | 0.000 | 0.000 | 0.382 | 0.3072 | 0.6190 | 1/5 |
| 2 | 0.382 | 0.000 | 0.000 | 0.382 | 0.6033 | 0.4044 | 1/5 |
| 3 | 0.382 | 0.000 | 0.000 | 0.382 | 0.0139 | 0.4044 | 1/5 |
| 4 | 0.382 | 0.000 | 0.000 | 0.382 | 0.1253 | 0.0595 | 1/5 |
| 5 | 0.382 | 0.000 | 0.000 | 0.382 | 0.4920 | 0.0595 | 1/5 |
Abb. 167

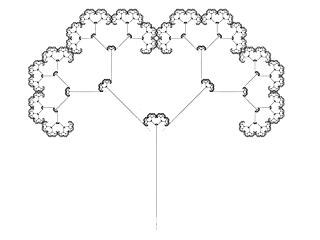

Abb. 168 zeigt eine baumartige Struktur.
| w | a | b | c | d | e | f | p |
| 1 | 0.00 | 0.00 | 0.00 | 0.50 | 0.00 | 0.00 | 0.05 |
| 2 | 0.42 | -0.42 | 0.42 | 0.42 | 0.00 | 0.20 | 0.40 |
| 3 | 0.42 | 0.42 | -0.42 | 0.42 | 0.00 | 0.20 | 0.40 |
| 4 | 0.10 | 0.00 | 0.00 | 0.10 | 0.00 | 0.20 | 0.15 |
Abb. 168

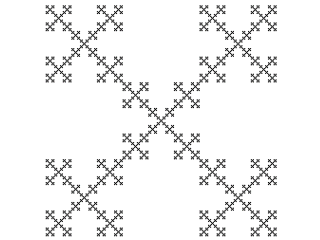

Abb. 169 zeigt eine kristallartige Struktur.
| w | a | b | c | d | e | f | p |
| 1 | 1/3 | 0 | 0 | 1/3 | 0 | 0 | 1/5 |
| 2 | 1/3 | 0 | 0 | 1/3 | 2/3 | 0 | 1/5 |
| 3 | 1/3 | 0 | 0 | 1/3 | 0 | 2/3 | 1/5 |
| 4 | 1/3 | 0 | 0 | 1/3 | 2/3 | 2/3 | 1/5 |
| 5 | 1/3 | 0 | 0 | 1/3 | 1/3 | 1/3 | 1/5 |
Abb. 169
|
